Router description :

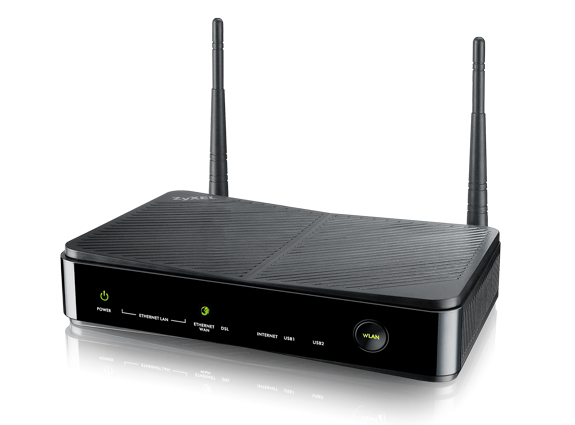

Front panel:

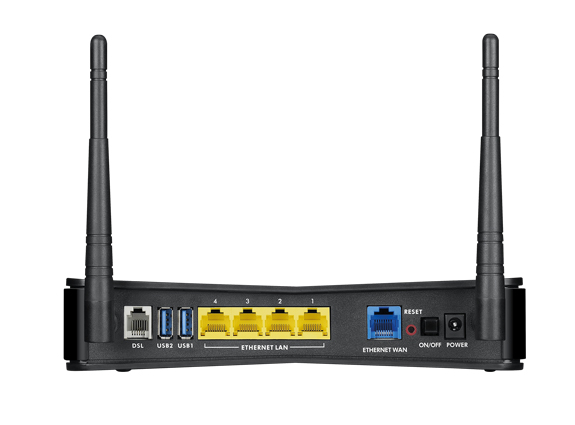

Rear panel:
here are the different ways to connect your router :

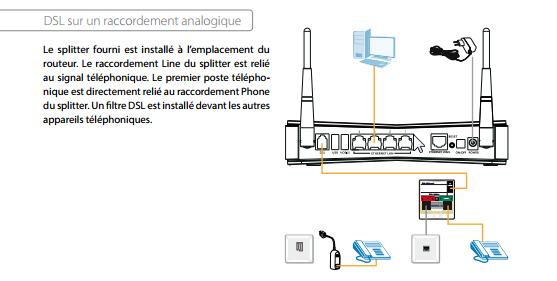

For a DSL line

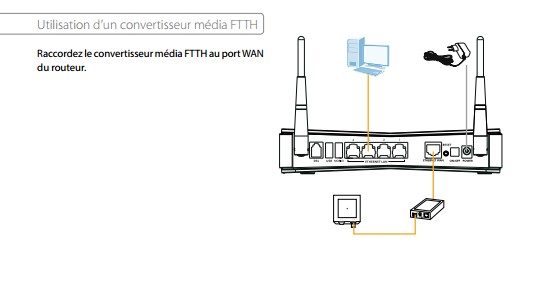

for a fiber connection :
Once the router is plugged in and powered up
open your browser http://192.168.1.1/

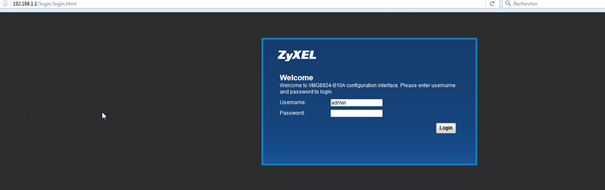

enter your login details on the page displayed
Username : admin
Mdp : 1234 (default password, following a reset) otherwise refer to the internet form provided by DFI.

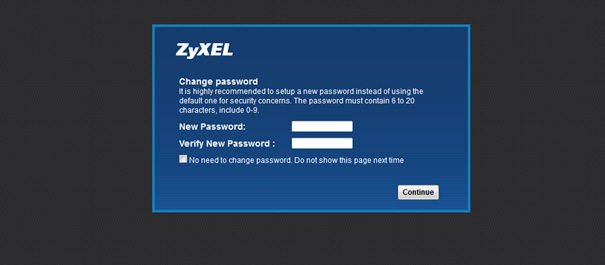

If you connect for the first time after a reset, you will be asked to change the router access password.
To configure your router’s internet connection
click on the + next to network setting

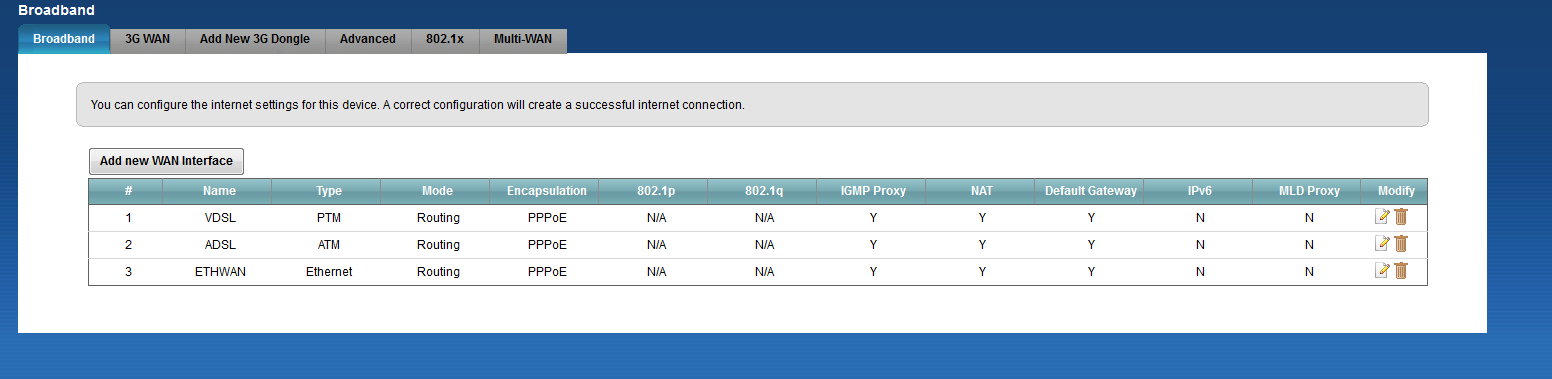

Then on Broadband, you will arrive on this screen:

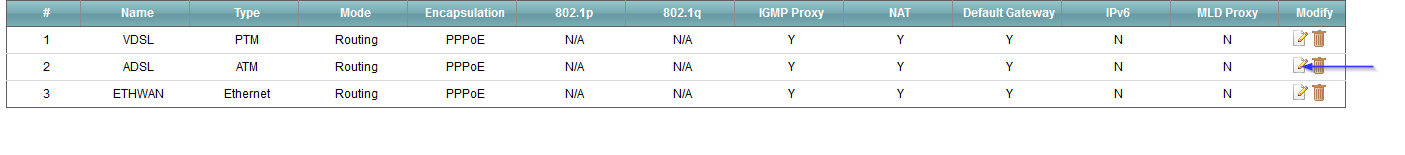

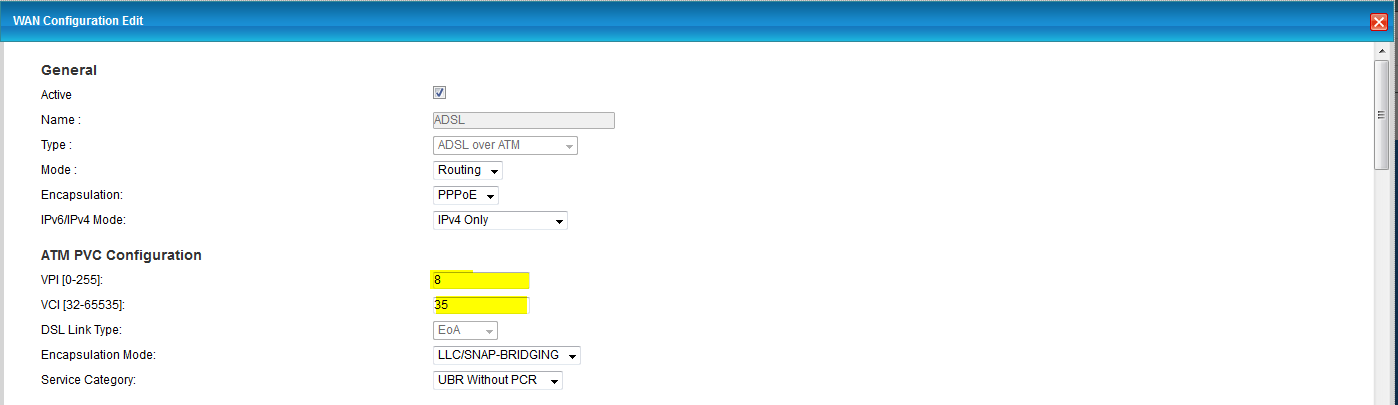

in the case of an ADSL access here are the parameters to be used:
All other parameters must remain unchanged

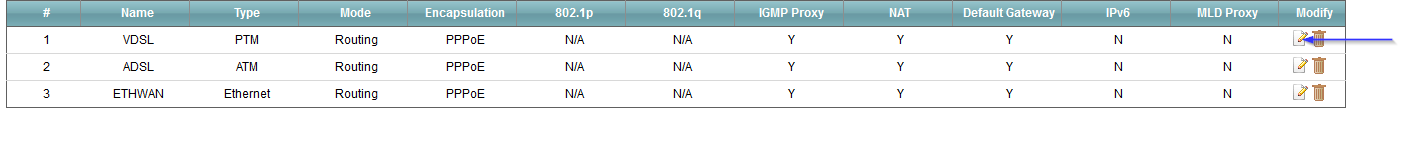

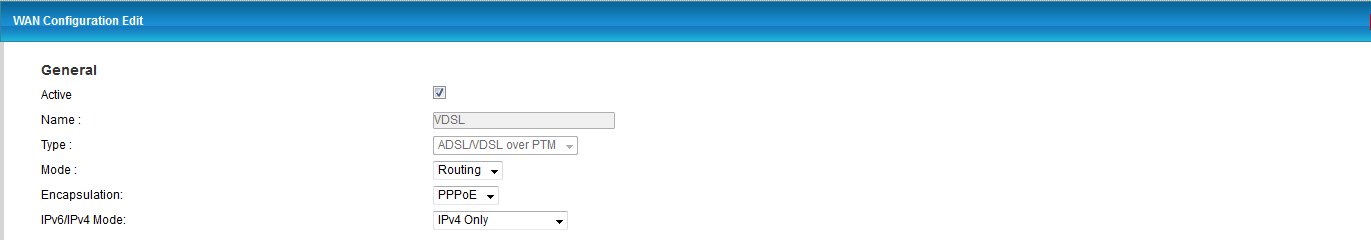

In the case of a VDSL connection :
All other parameters must remain unchanged

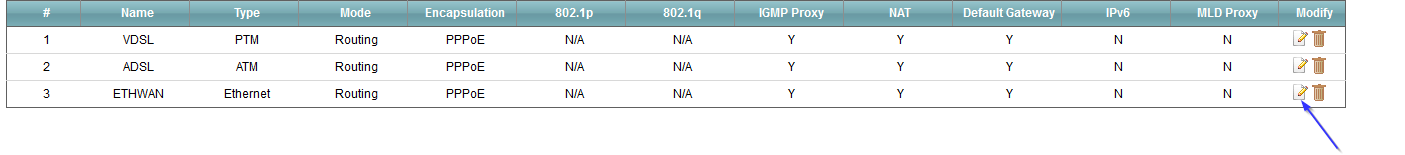

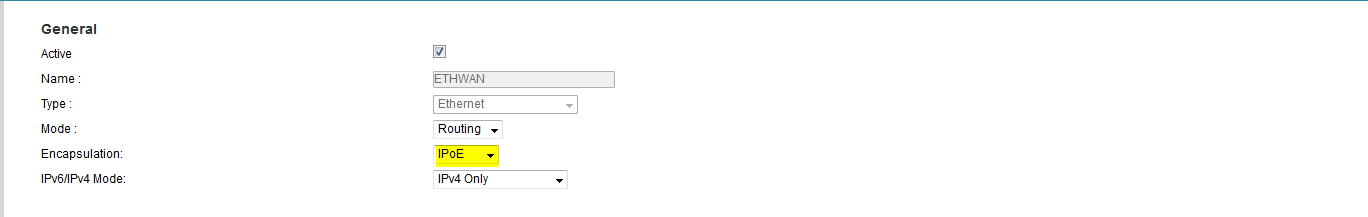

As part of a Fibre connection:

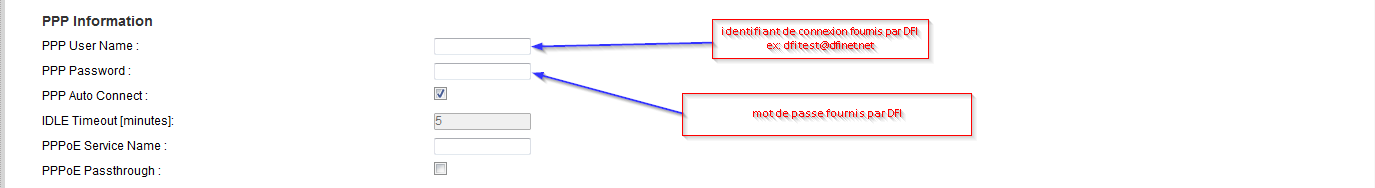

Here are the parameters to use:
